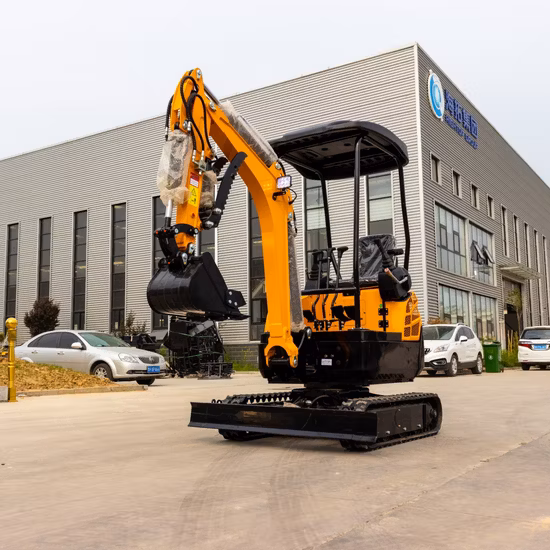

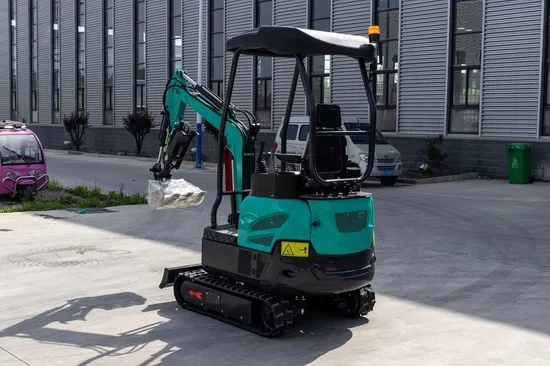

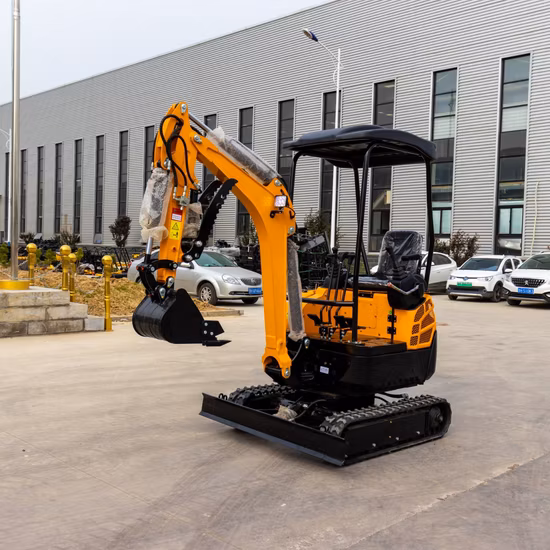

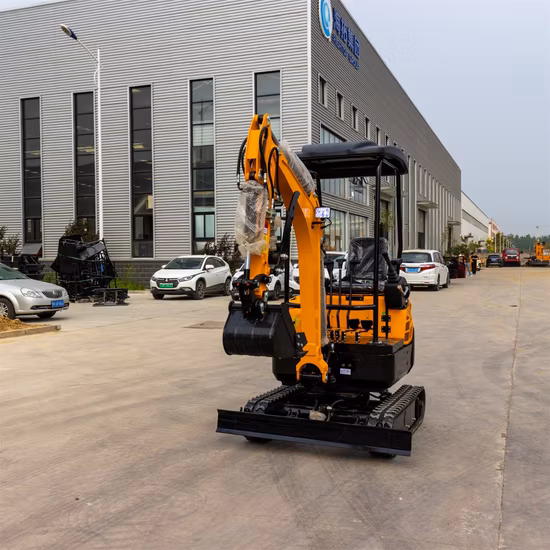

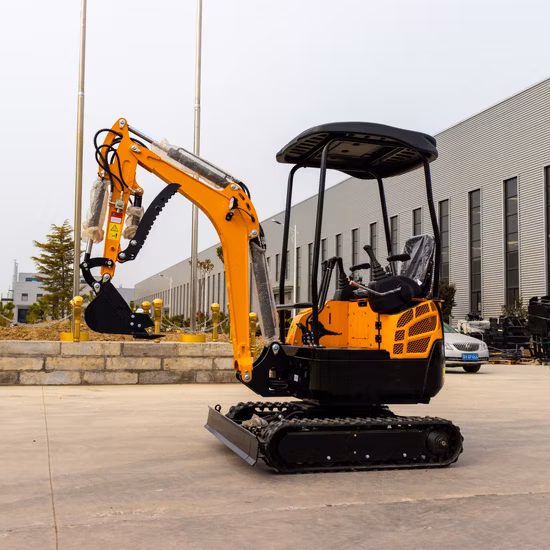

Ht18 Rubber Track Mini Excavator Small Digger Mini Bagger with 1800kg EPA Euro 5 for Sale

Ht18 Rubber Track Mini Excavator Small Digger Mini Bagger with 1800kg EPA Euro 5 for Sale

Package Size 260.00cm * 105.00cm * 170.00cm Package Gross Weight 1000.000kg Product Description Japanese Imported engine
SHARE

Description

Basic Info.
Model NO. HT15
Bucket Shovel
Transmission Hydraulic Transmission
Drive Type Internal Combustion Drive
Bucket Capacity 0.025m3
Size Small-Scale
Certification CE, EPA
Condition New
Swing Speed 12rpm
Rated Power 10.2kw
Main Valve Beifang
Engine Kubota D722
Operating Weight 1800kg
Bucket Width 40cm
Product Name Ht18 Mini Excavator
Transport Package Woodcase
Specification 2600*1000*1700mm
Trademark HIGHTOP
Origin Shandong
Production Capacity 1000sets/Month
Packaging & Delivery
Package Size 260.00cm * 105.00cm * 170.00cm Package Gross Weight 1000.000kg
Product Description

Product Description

Japanese Imported engine, EPA OR EURO FIVE engine optionalMultiple uses, small turning radius, adjustable height dozer blade, easy to dismantle canopy, 360-degree rotation, small size,light weight, good transportation, low fuel consumption, high efficiency, stable performance, safety and reliability, flexible and convenient operation , Wide range of advantages.

Powerful Engine and Hydraulics: The 18.4 kW engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs. The matched cooling system is designed to accommodate working within confined areas and also the powerful hammer.

Hose and Cylinder Protection: Bucket hoses are well protected within the boom and the cylinder is mounted above the structure to increase the machines durability for working in tough environments. We also have 0.8 ton , 1 ton,1.6 ton, 1.8 ton,2 ton,2.2 ton, 3.5 ton, 6.5 ton, 7.0 ton, 7.5 ton, 8.0 ton, 9.0 ton,13,5 ton, 18 ton mini Excavator Optional!Specificitions

ModelHT18
Performance Parameter
Operating weight(KG)1800KG
bucket capacity0.02
Bucket width40cm
rated power10.2KW/2500RPM
Swing speed12RMP
Gradeability30 degrees
EngineKUBOTA D722
Main valveBeifang
Main pumpDouble pump
Fuel tank capacity7.5L
Hydraulic oil tank capacity21L
Working Range
Max.digging height a2580
Max. uploading height b1637
Max.digging depth c2060
Max. digging distance d3160
Mini. radius of gyration e1711
Max.height at minimum radius of gyration f2048
Max.digging height a2580
Overall Dimensions
Overall length 4325
Transport length A1655
Overall width B1100
Upper width D990
Total height C2272
Width of track shoe F180
Gauge G920
Minimum ground clearance H119
Tail turning radius I790
Track ground length J1050
Track length K1545
Swing Boom (Lift/Right)60 degrees
